ROBERT I. MITNIK, A.I.A.

Historic Restoration
Gloucester City Hall Structural, Roof and Tower Repairs

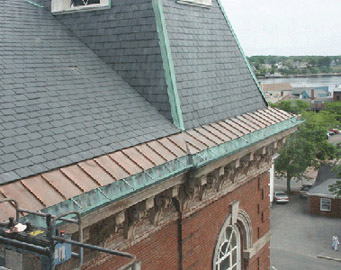

Severe leaks caused deterioration of the main roof truss supports and the subsequent evacuation of City Hall. Roof repairs at the eaves and tower cricket were made on the outside. The roof trusses were supported by shoring from the basement up to the attic. The repairs were then made to the trusses on the inside. The existing metal ceiling was replaced with new replicated metal panels.

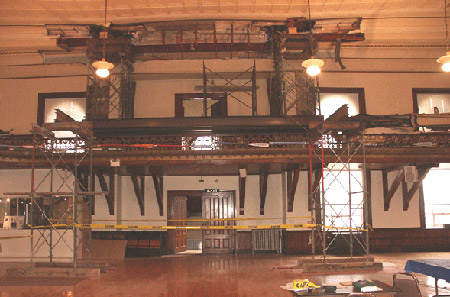

Shoring of the main trusses in the auditorium

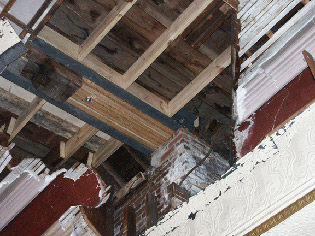

New masonry seat and truss bottom
chord from below.
New steel reinforcing of the truss bottom chord.
